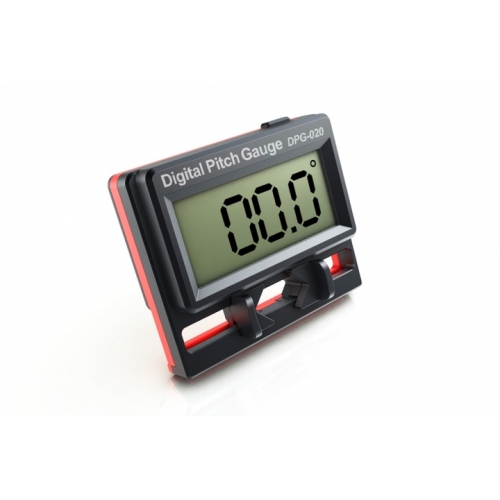

SkyRC Micro Digital Pitch Gauge

SkyRC Micro Digital Pitch Gauge

SkyRC

Availability: Not available

Shipping time: 24 hours

The cost of shipping: from 2.41 Euro Available delivery forms for viewing the product:Curier Service - 3.62 Euro
Air Mail - 3.86 Euro
Poczta Polska list polecony - 2.41 Euro
Surface mail - 3.37 Euro
InPost Paczkomaty24 - 2.41 Euro
Personal Acceptance - 0.00 Euro

Number: 157

Producer code: SK-500012-01

Stockage:

Price: 22.65 Euro

Currently not available

add to wish list

  • Product description
  • Specifications:
  • Product reviews (0)

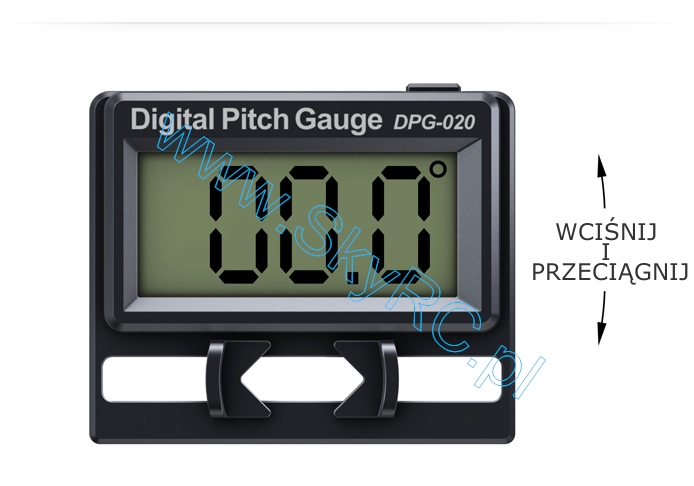

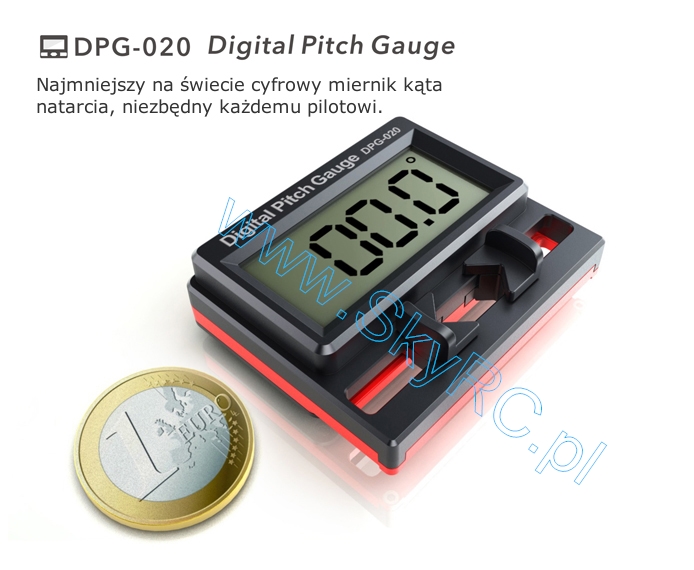

alt DPG-020  Digital Pitch Gauge
  The World's Smallest Digital Pitch Gauge,
  A Must Have for Pilots

alt

  This Micro Digital Pitch Gauge is the world's smallest electronic Digital Pitch Gauge, designed for small helicopters (up to 450 class) and serves to measure the rotor blade pitch value. It is powered by one piece of CR2032 Lithium battery and allows blades from 15mm to 35mm. The built in digital gyroscopic sensor is capable of detecting pitch angle ±90°, with result displayed through LCD screen, providing a simple and precise way of measuring pitch angle.
Small size & Light weight
Large LCD for easy reading

alt
alt Features
  •Up to 450 size helicopter
•Fast and accurate measurement with a precision of 0.1°
•Zero function
•Auto rotating display
•Auto power-off (Power shuts down after 5 minutes without
  any movement)

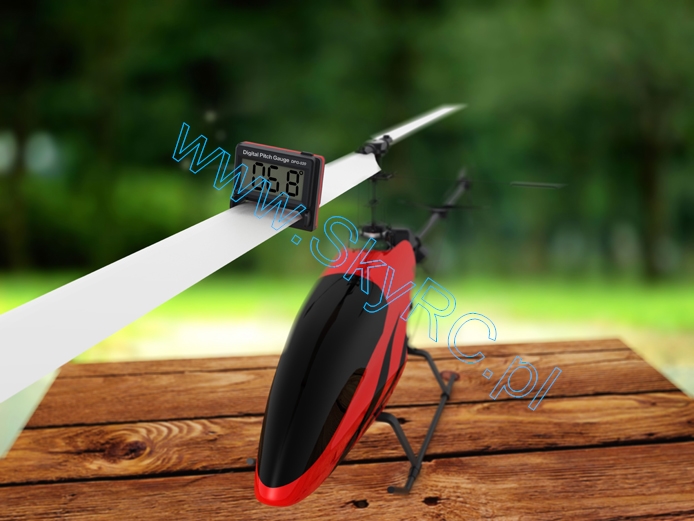

Simply install it on the blade, power it on and the pitch of the blade will display in the LCD screen. With this digital pitch gauge, you could adjust the helicopter rotor blades with a precision of 0.1° in 1 second. Shortest time spent, best result got.

alt

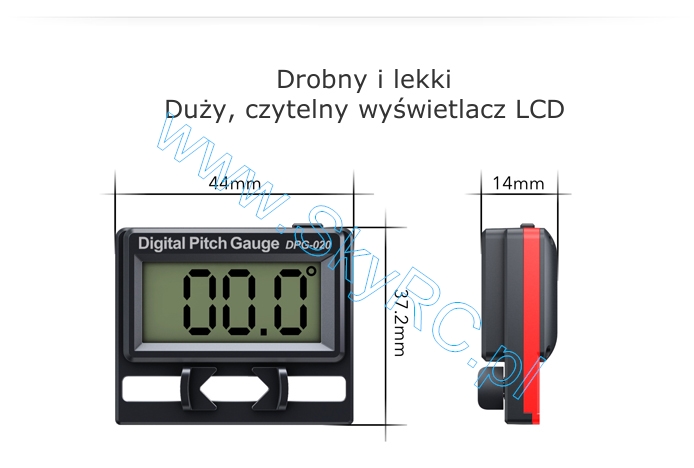

  Body Dimension
  Suitable blade width   15mm~35mm
  Detectable pitch range   ±90°
  Temperature   0~40°C
  Resolution   0.1°
  Current consumption   4.5mA
  Battery   CR2032 Lithium X1
  Weight (including battery)   20g
