SkyRC Digital Pitch Gauge

SkyRC Digital Pitch Gauge

SkyRC

Availability: Not available

Shipping time: 24 hours

The cost of shipping: from 2.41 Euro Available delivery forms for viewing the product:Curier Service - 3.62 Euro
Air Mail - 3.86 Euro
Poczta Polska list polecony - 2.41 Euro
Surface mail - 3.37 Euro
InPost Paczkomaty24 - 2.41 Euro
Personal Acceptance - 0.00 Euro

Number: 156

Producer code: SK-500009-01

Stockage:

Price: 31.09 Euro

Currently not available

add to wish list

  • Product description
  • Specifications:
  • Product reviews (0)

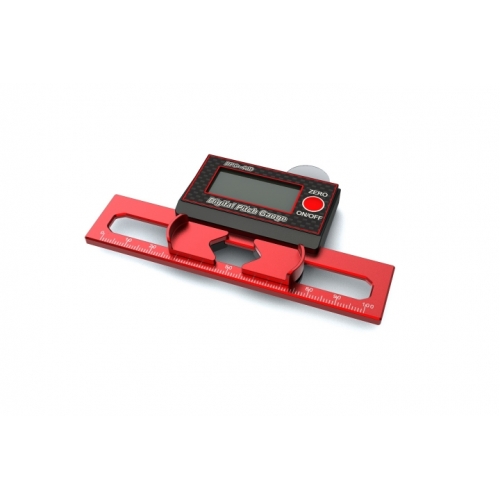

Digital Pitch Gauge
  The digital pitch gauge is designed for application in model helicopters and serves to measure the rotor blade pitch value.The built in digital gyroscopic sensor is capable of detecting pitch angle, with result displayed through LCD screen, providing a simple and precise way of measuring pitch angle.

  Features
  Large LCD for easy reading
  Up to 700 mm blades (Suitable for 250 to 700 size helicopters)
  Fast and accurate measurement
  Zero function
  Auto rotating display
  Auto power-off (Power shuts down after 20 minutes without
any movement)

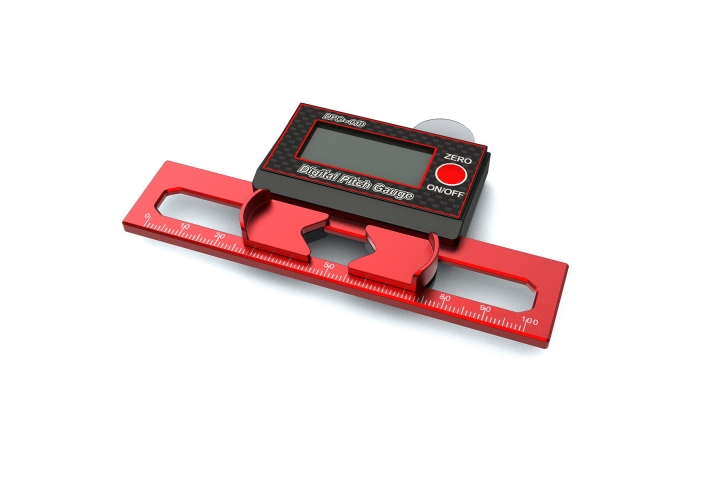

Illustration

  How to use
  Press "POWER" button for about two seconds to turn on the power. For correct pitch measurements,DPG-010 digital pitch gauge must be zeroed before being used. Press "ZERO" button once to zero the gauge.Please refer to the below instruction to understand how to use DPG-010. After using, Press "POWER" button for about two seconds to turn off.

Zero The Gauge
Place the DPG-010 horizontally leveled with top of helicopter frames.
Press〝ZERO〞to zero the gauge.


Measure The Pitch
Mount the DPG-010 on main blade to measure the pitch.



  • Body Dimension: 113x56x14mm
  • Suitable blade width: 20mm~75mm
  • Detectable pitch range: ±90°
  • Temperature: 0~40°C
  • Resolution: 0.1°
  • Current consumption: 2.8mA
  • Battery: CR2032 Lithium X2
  • Weight (including battery): 40g
  • Aluminium blade clamp
